Professional Shock Absorption Metal Robot Tank Car Chassis with 2pcs High Torque DC Encoder Motor, Remote Control Smart Tracked Suspension Absorbing Vehicle Platform for Arduino/Raspberry Pie/Micobit

Robot Tank Car Chassis Parameters:Name: TS300 Shock Absorption Tank ChassisMaterial: Aluminum alloySurface treatment: Sandblasting oxidationColor: BlackWeight: 0.99 kg/2.2 lbSize: About 26.9*25.8*11.1cm / 10.6*10.2*4.4inchesWheel: Aluminum AlloyTrack: Engineering plasticDesigned load: 5 kg/11 lbIndependent shock absorption system Motor Parameters:Name: 25mm gear motor (has hall sensor)Output speed: 150±10%rpmNo_load current: 200mA (Max)Stall current: 4500mA(max)Stall torque: 9.5kgNaNRated speed: 100±10%rpmRated torque: 3000gNaNRated current: 1200mA (Max)Noise: 56dBWorking voltage: 9-12VOutside Shaft Length: 14.5mmShaft End Play: 0.05-0.50mmScrew Size:M3.0Dia. Of Shaft phi 4mm, D3.5 Encoder Parameters:Type: AB-phase incremental Hall encoderLine speed: 150 (measured by reducer output shaft)Supply voltage: 5VInterface type: PH2.0 (standard motor cable) Track Parameters:Usage: Used for shock absorption tank chassisType: Shock absorption seriesMaterial: Engineering plasticSize: About 79*4cm (length*width), about 100 jointsNote: The crawler is detachable and requires the help of multimeter pen head or other pointed tools. NOTE:In order to facilitate transportation, the product is not assembled.The size may have 2-3mm differs due to the maunal measurement.More documents can be downloaded at gitnova.com. Packing List:Metal part: 1setBearing wheel: 10pcsDriving wheel: 2pcsPlastic track: 2pcsEncoder DC motor: 2pcsScrews kit: 1set

• Package Included -- The RC tank model includes 1set metal part, 10*bearing wheel, 2*driving wheel, 2*plastic track, 2*encoder DC motor and 1set screw kit. If you have any questions about the car chassis or missing accessories, please do not hesitate to contact us.

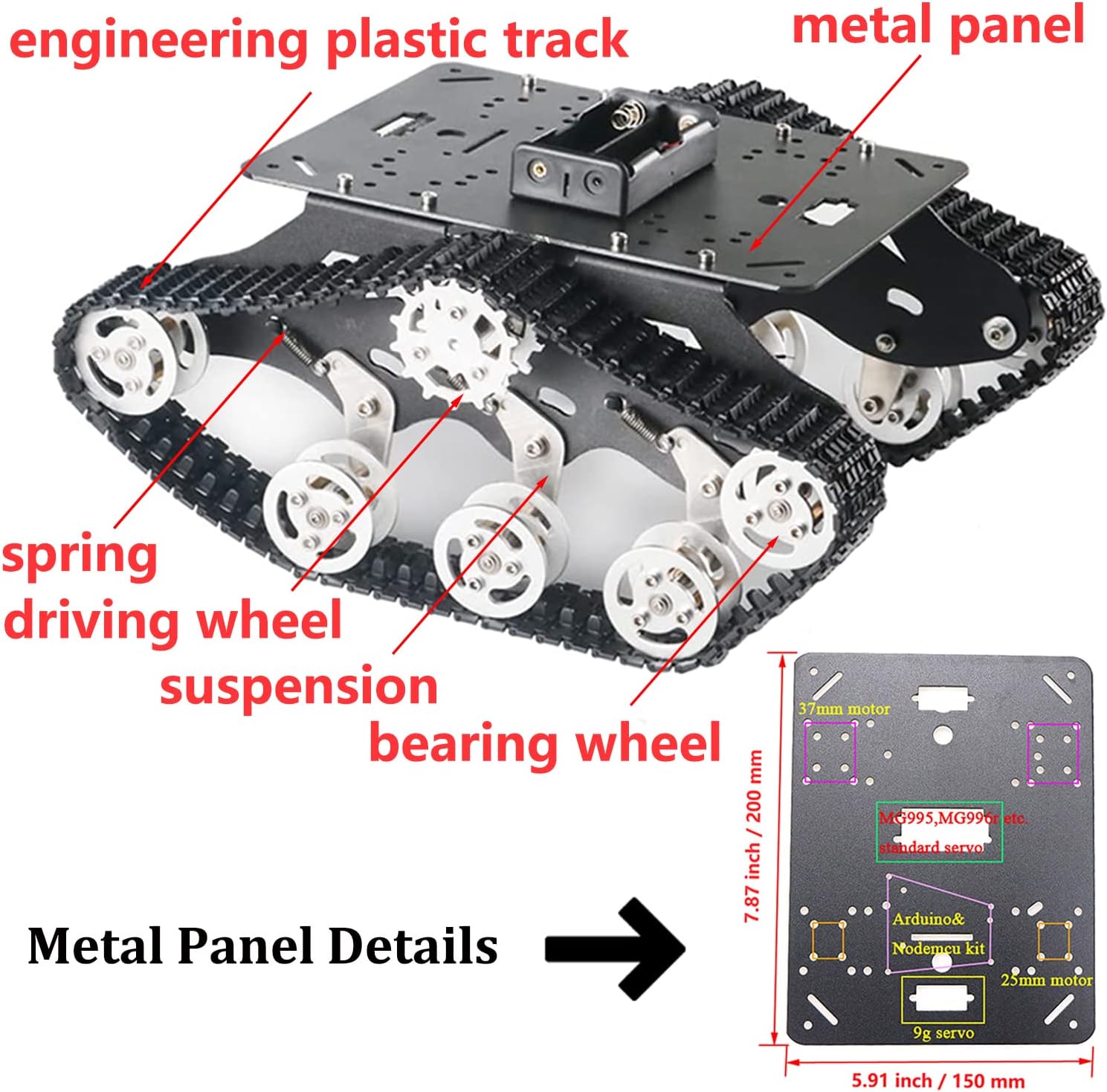

• TS300 Shock Absorption Tank Chassis -- This shock-absorbing rc tank chassis kit included 10*bearing wheels, 2*driving wheels, of which, 8*bearing wheels with 8*springs and suspension supporting holders with damping suspension system function. The tank chassis is metal, and the load wheels are equipped with bearings, which makes this tank car chassis run smoothly and have low friction.
• High Torque Encoder DC Motor -- This shock absorbing robot tank chassis features a pair of high torque DC motors with encoders to get feedback like speed and wheel spin. This professional tank chassis is very suitable for makers, school teens for robot learning, DIY competition, teaching, and STEAM education.
• Metal Tank Car Chassis -- This intelligent crawler car chassis is beautifully designed. All robot chassis are metal except plastic track. The length of the track can be adjusted according to different requirements, please refer to the picture on the left for the installation steps. This tracked robot tank chassis has many accessories that require your patience to install. We also provide a simple installation manual.
• Robotics Platform Learning Kit -- By assembling this robot tank chassis kit, you can learn the robot structure. You can also learn how to program based on electronic development boards compatible with Arduino, Raspberry Pi, STM32. And do many interesting applications, such as video monitor, AR/VR camera robot mobile platform. In the manual, we provide the source code with WiFi, Bluetooth control mode.
